Product Features

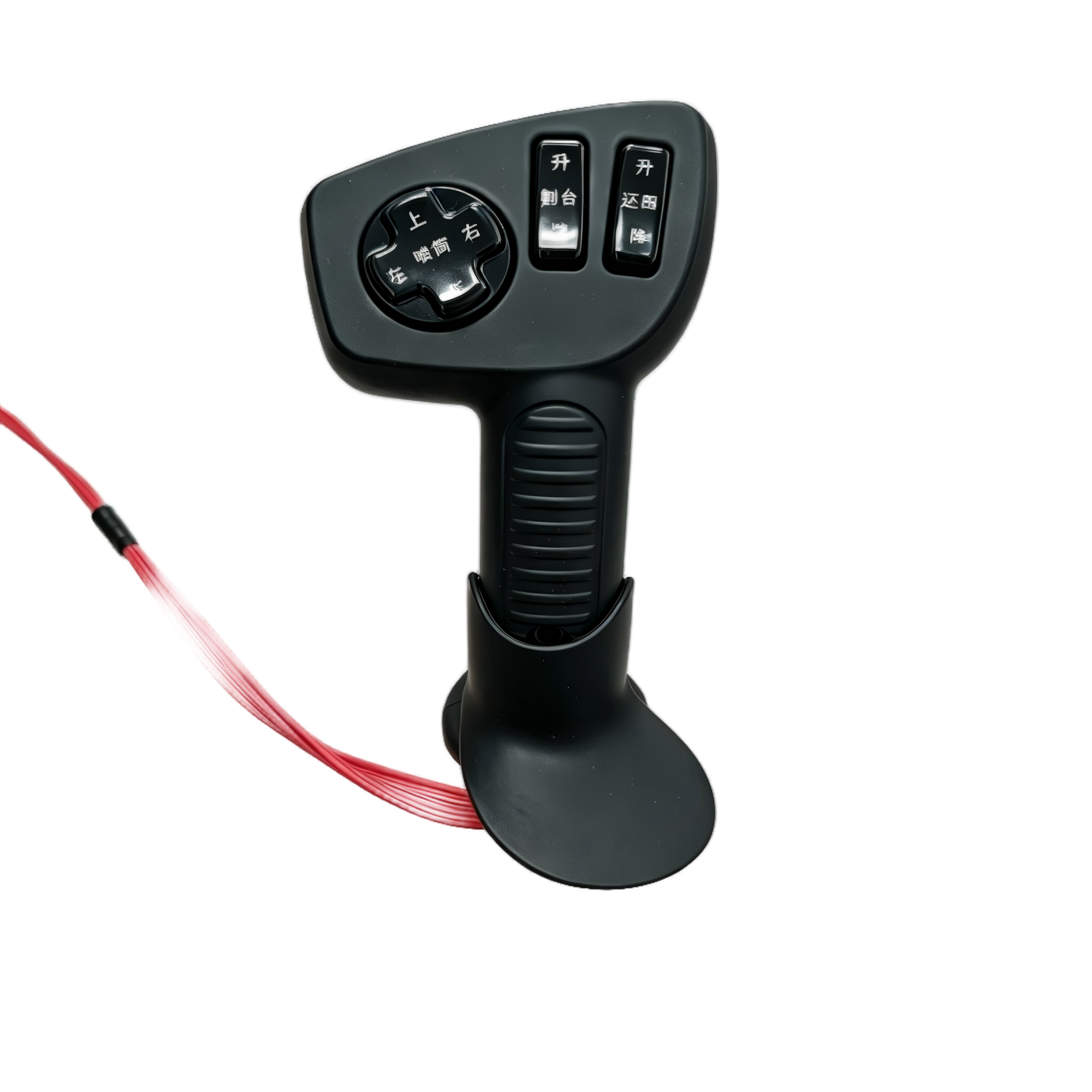

1 four-way cross button and 2 rocker switches on the handle panel

Customizable text markings on the panel

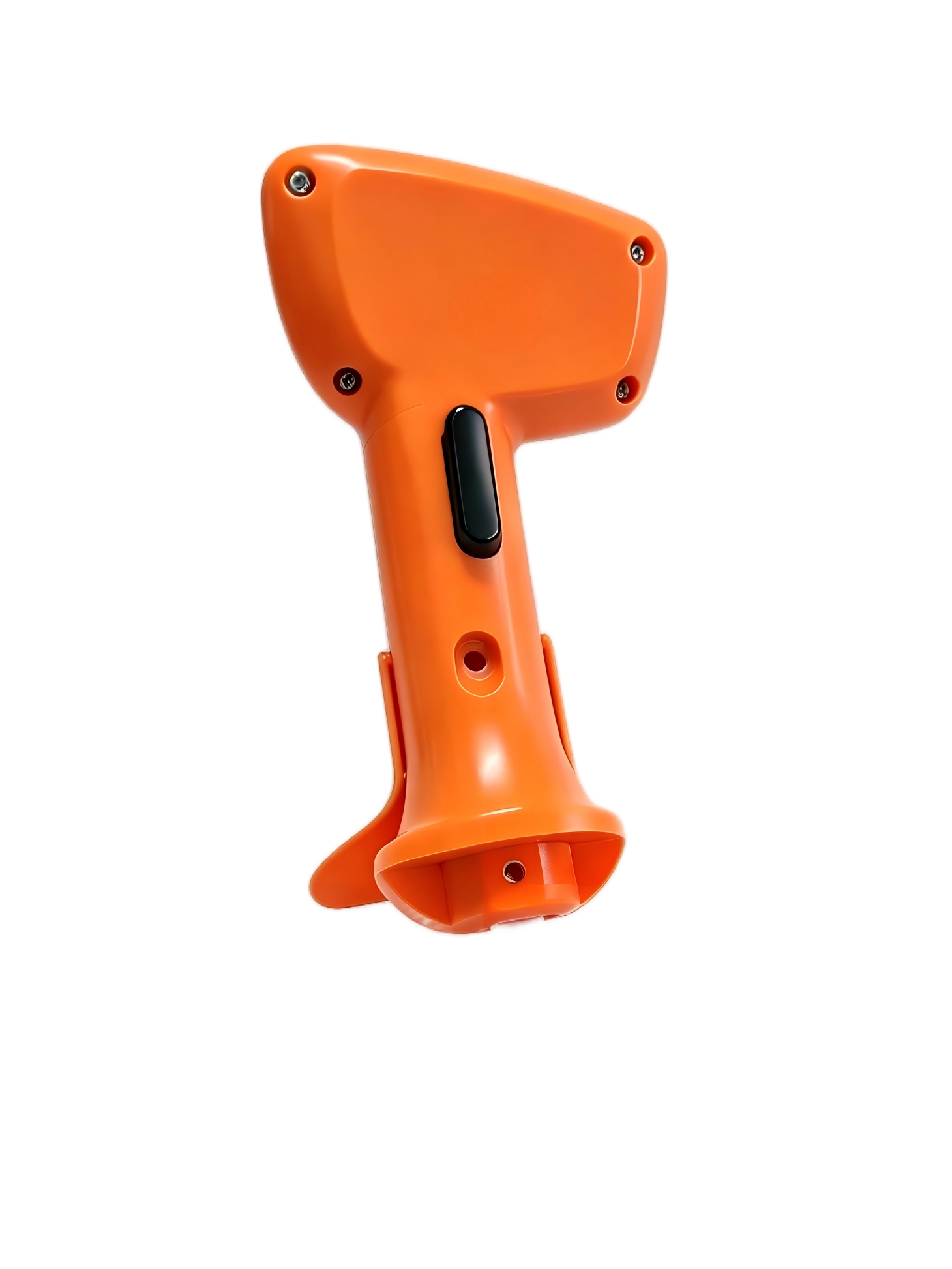

The handle is made of synthetic engineering plastic, sturdy and long service life

Signal output: switch signal or CAN bus output

Height-adjustable hand rest

Compatible with various controllers at the bottom

Application Scope

Motor graders

Loaders

Rotary drilling rigs

Electro-hydraulic control systems

Technical Specifications

Total service life: over 2,000,000 cycles

Operating temperature: -40°C ~ +85°C

Storage temperature: -40°C ~ +85°C

Mechanical service life of thumb wheel: over 1,000,000 cycles

Electrical service life of buttons: over 1,000,000 cycles

Operation mode: momentary self-reset
