Product Features

Adopts advanced ergonomic design

Dustproof & waterproof construction

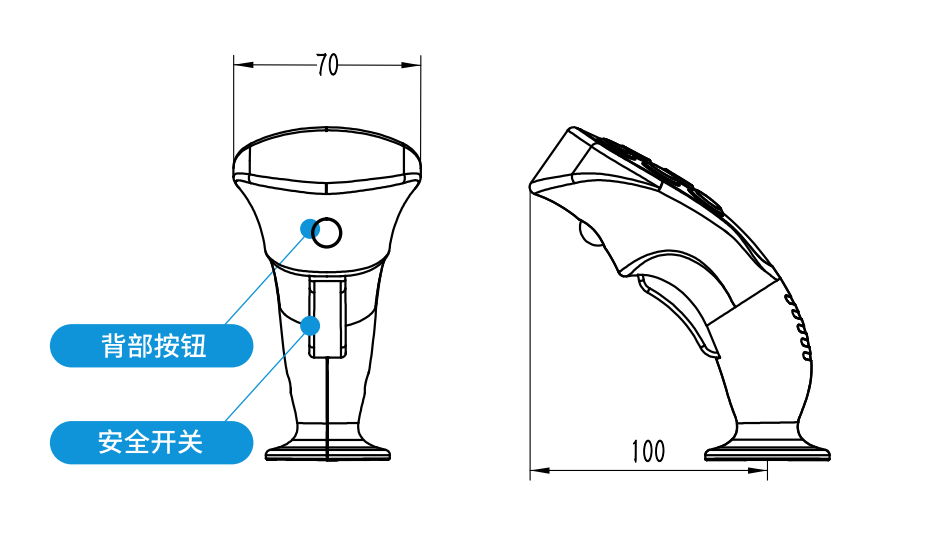

Multiple button combinations; rear buttons and safety switches optional

Optional rocker switches, thumb wheels and other accessories

Supports switch signal output and CAN bus output

Application Scope

Industrial control handles

Electronic control armrest boxes

Control panels

Electro-hydraulic control systems

Technical Specifications

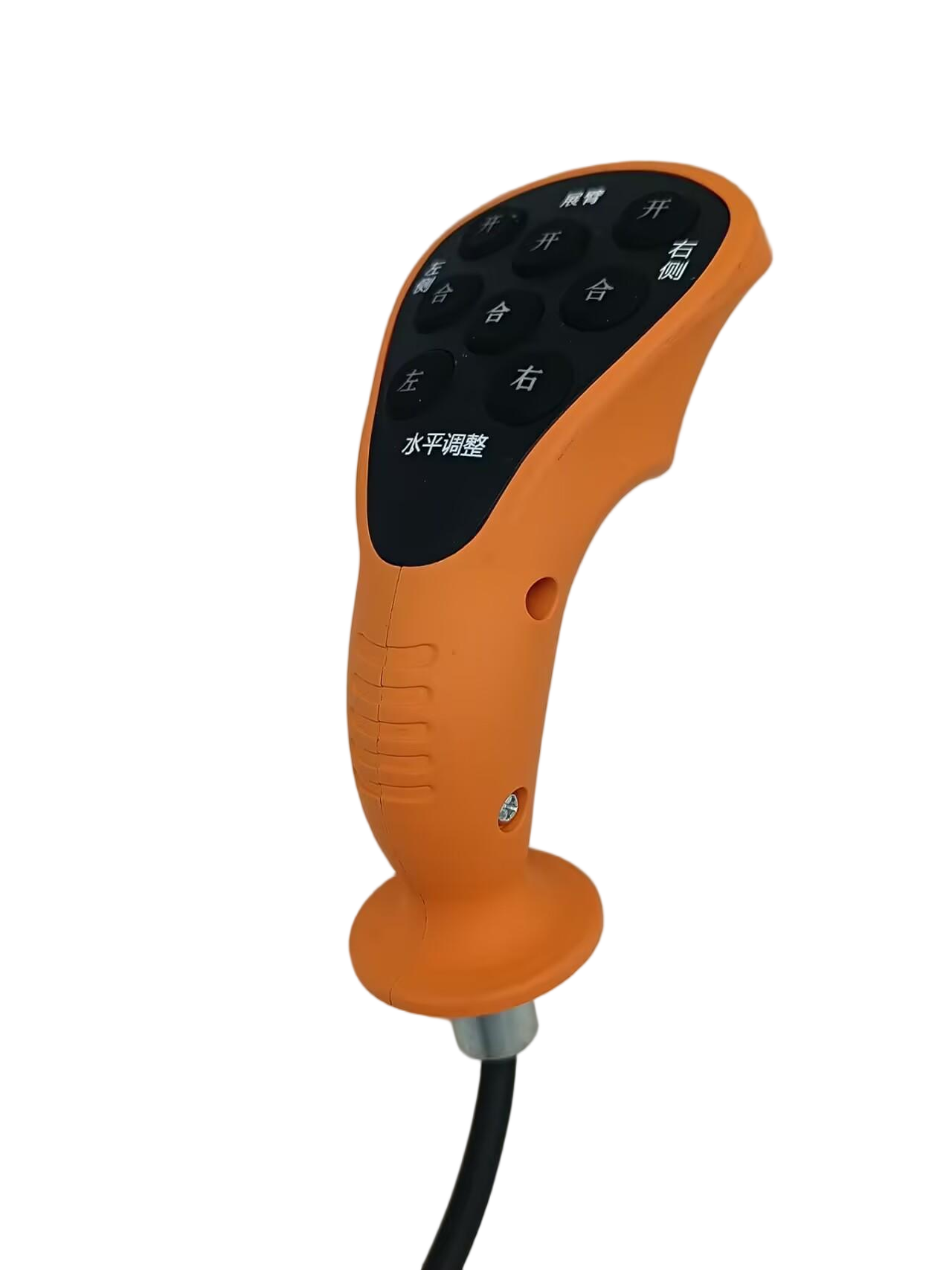

Handle panel: The quantity and marking text of buttons can be customized as required, with backlight indicators.

Wire outlet: Standard vertical outlet; side outlet available upon customer request.

Customizable length of handle wiring harness.

Internal thread connector: M14.

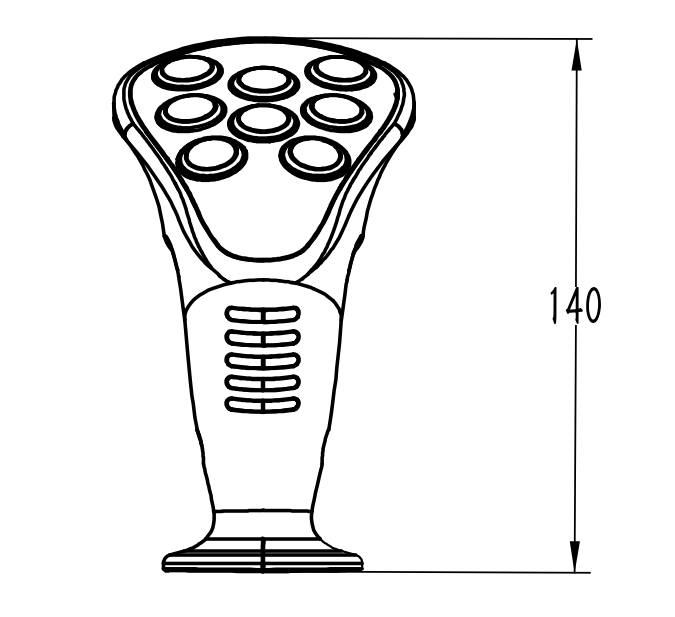

Number of mountable buttons on panel: 1–8

Button operating force: Approx. 5 N

Button positioning mode: Momentary self-reset or latching

Mechanical service life of buttons: Over 1,000,000 cycles

Button load capacity: 2 A at 36 V DC

Button insulation resistance: >1000 MΩ

Operating temperature: -30°C ~ +70°C

Storage temperature: -40°C ~ +85°C
