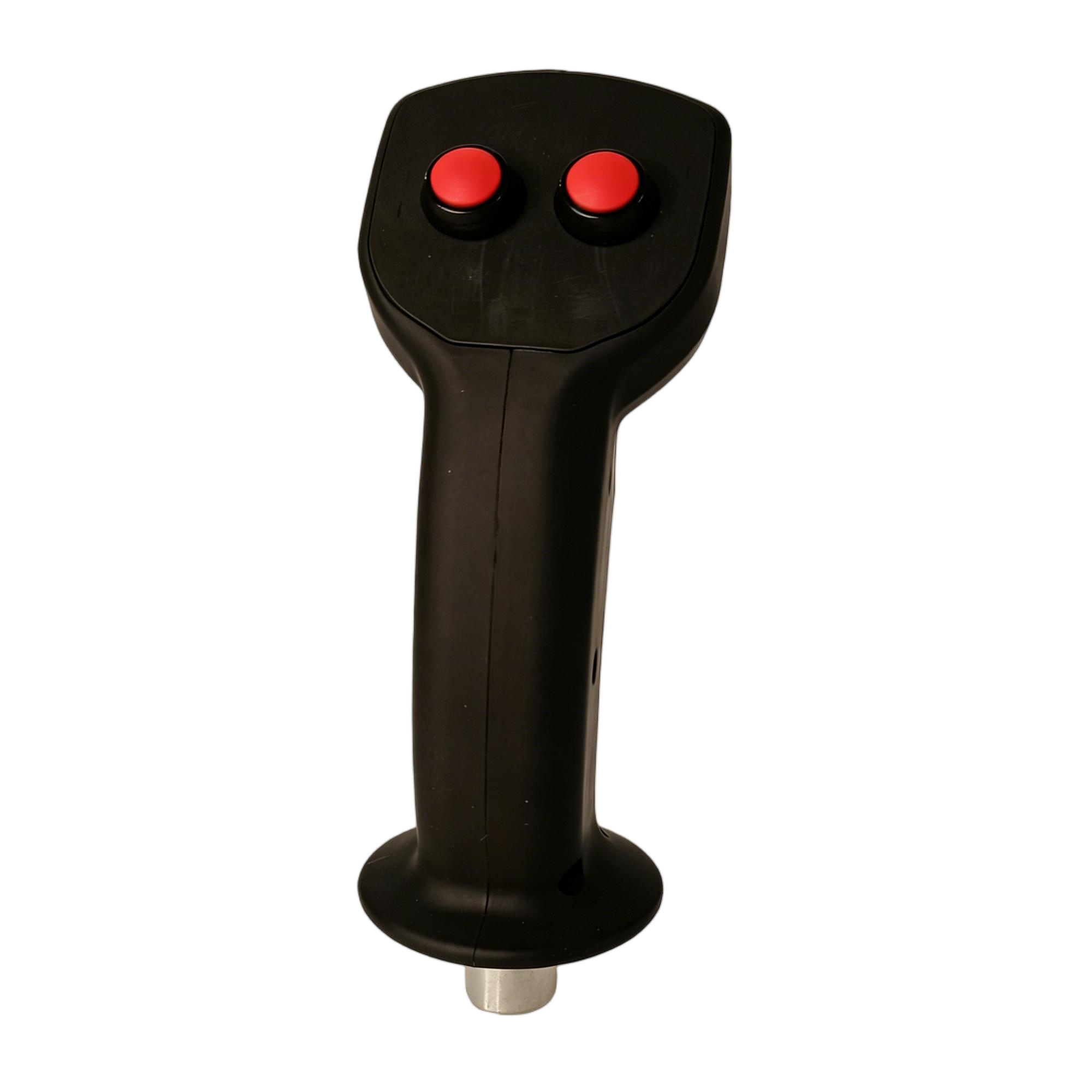

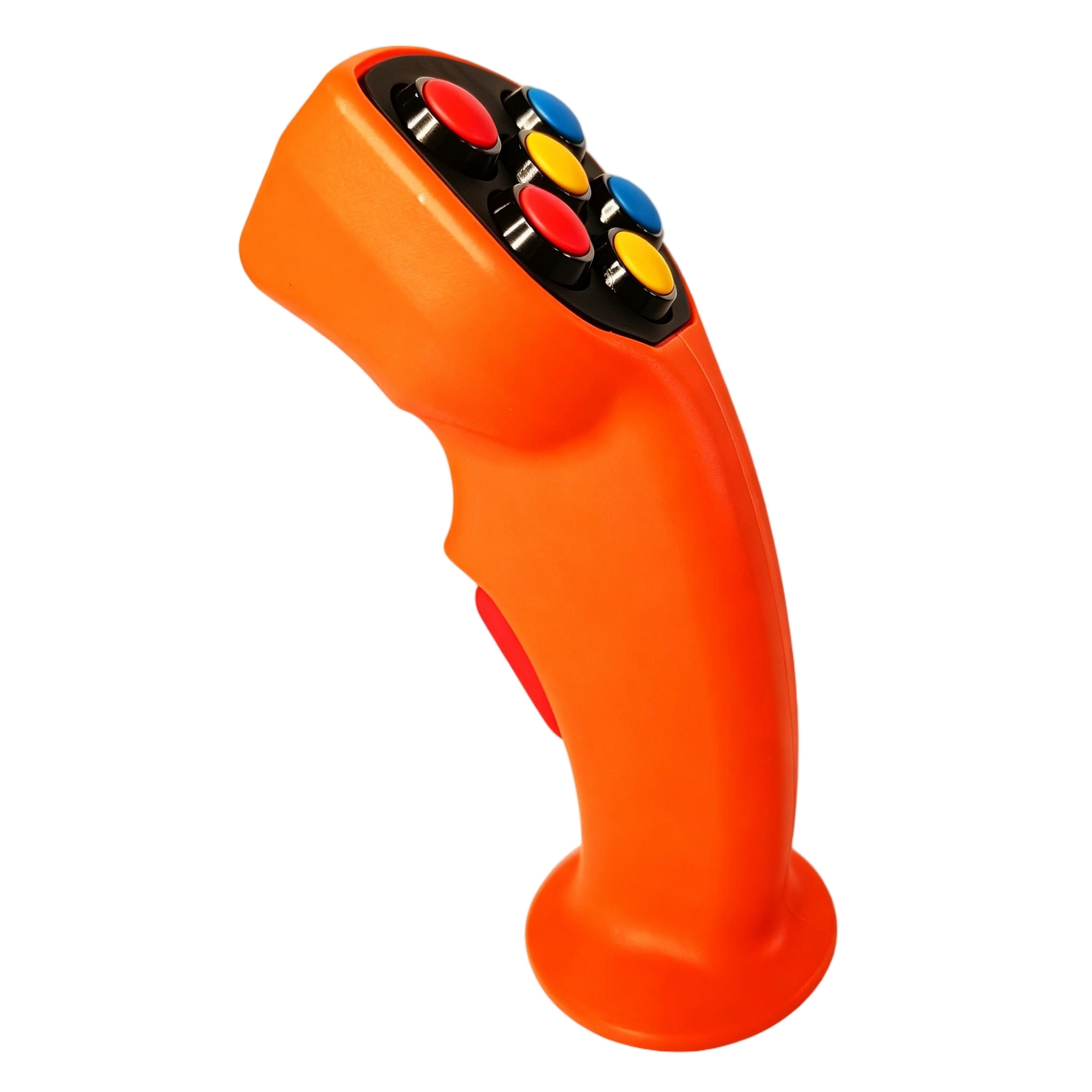

Product Features

Adopted advanced ergonomic design concept

Comfortable grip and robust durability

Dustproof and waterproof structure

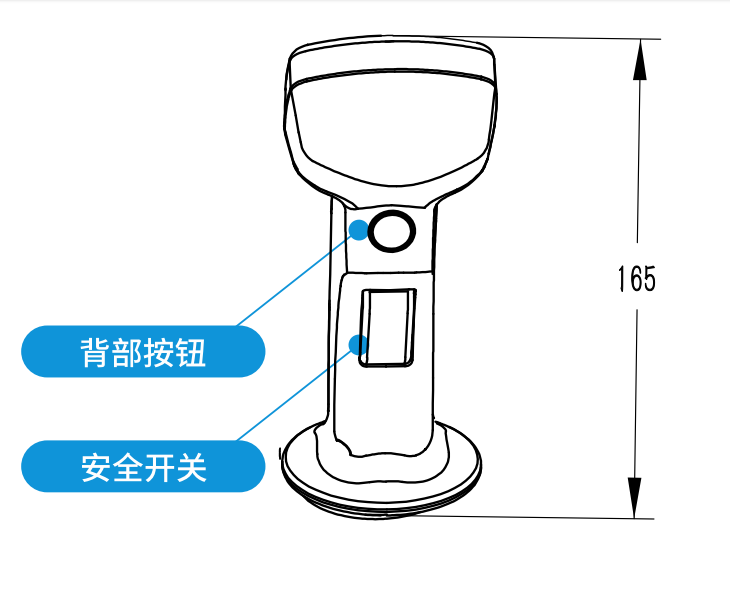

Multiple button combinations with safety switches

Optional rocker switches, thumb wheels and other accessories

Application Scope

Industrial control handles

Electronic control armrest boxes

Control panels

Electro-hydraulic control systems

Technical Specifications

Mechanical Parameters

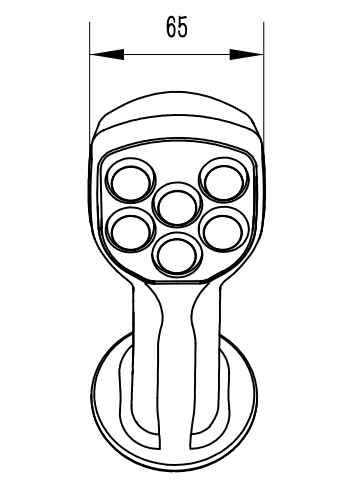

Number of mountable buttons on panel: 0–8

Button operating force: approx. 5 N

Button operation mode: spring automatic reset, or latching buttons optional

Mechanical service life of buttons: over 1,000,000 cycles

Mounting Parameters

Wire cross-section: 0.5 mm², other specifications available

Standard direct wire outlet, no terminal connectors

Customizable wire harness length

Internal thread interface: M14 or M12

Environmental Parameters

Operating temperature: -30°C ~ +80°C

Storage temperature: -40°C ~ +85°C
