Product Features

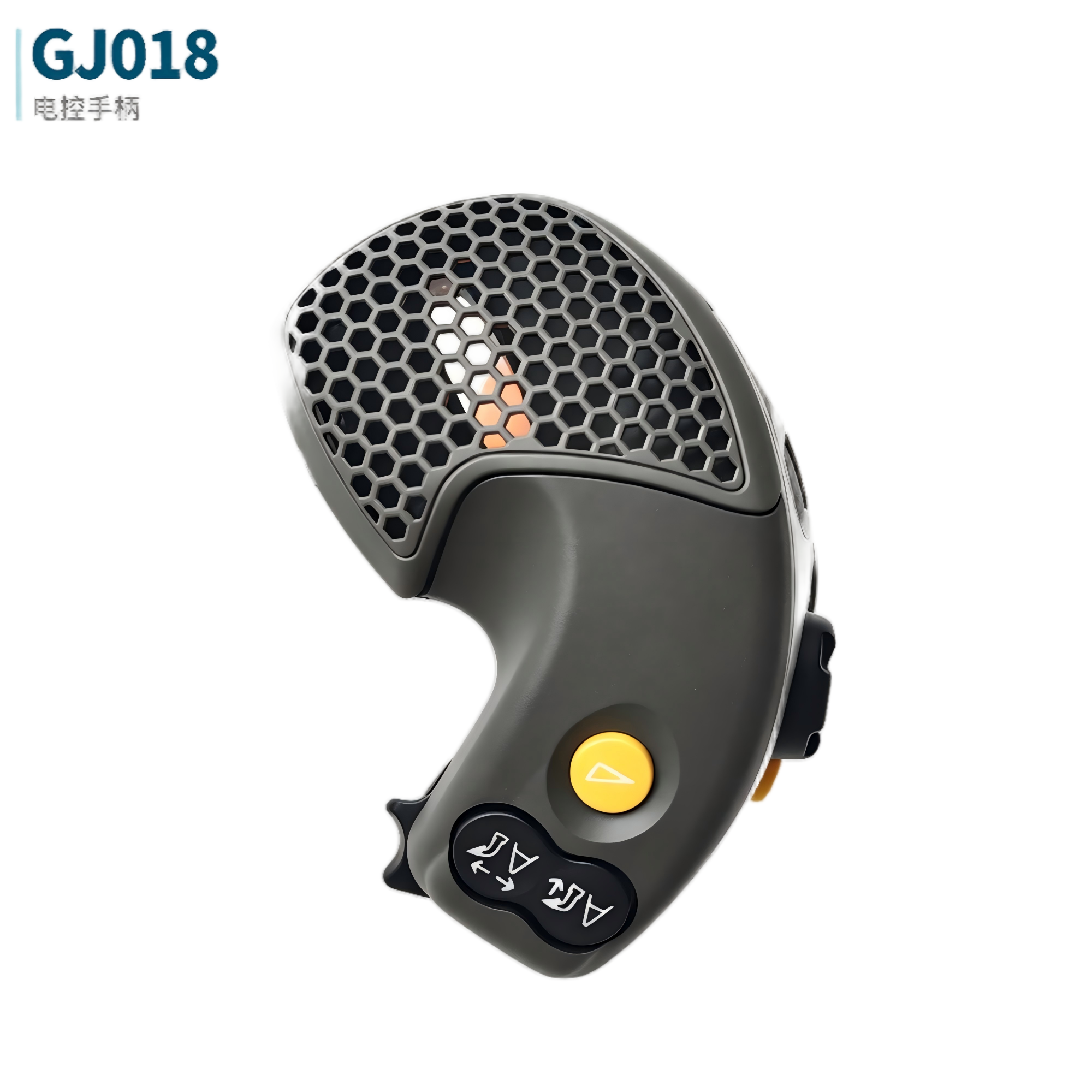

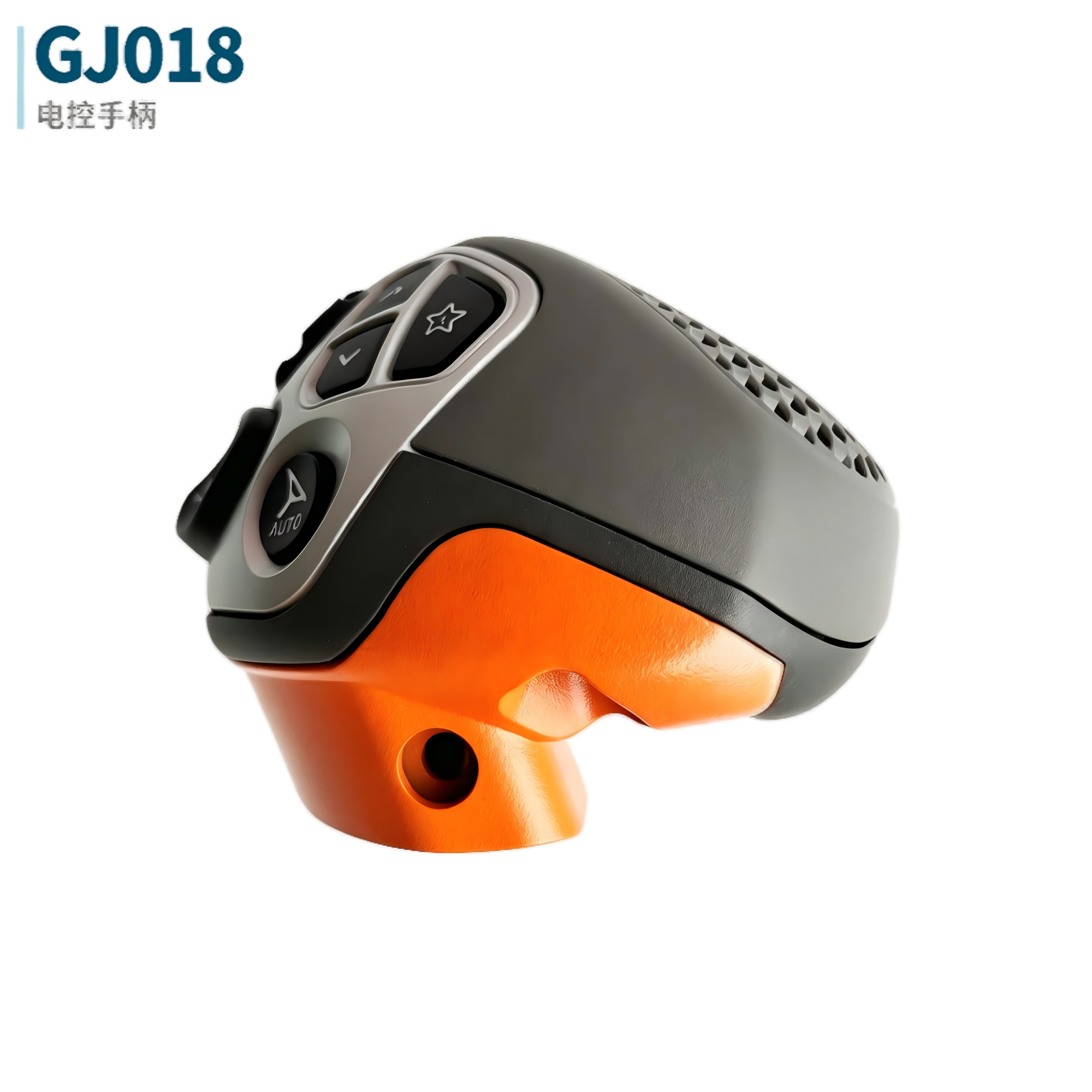

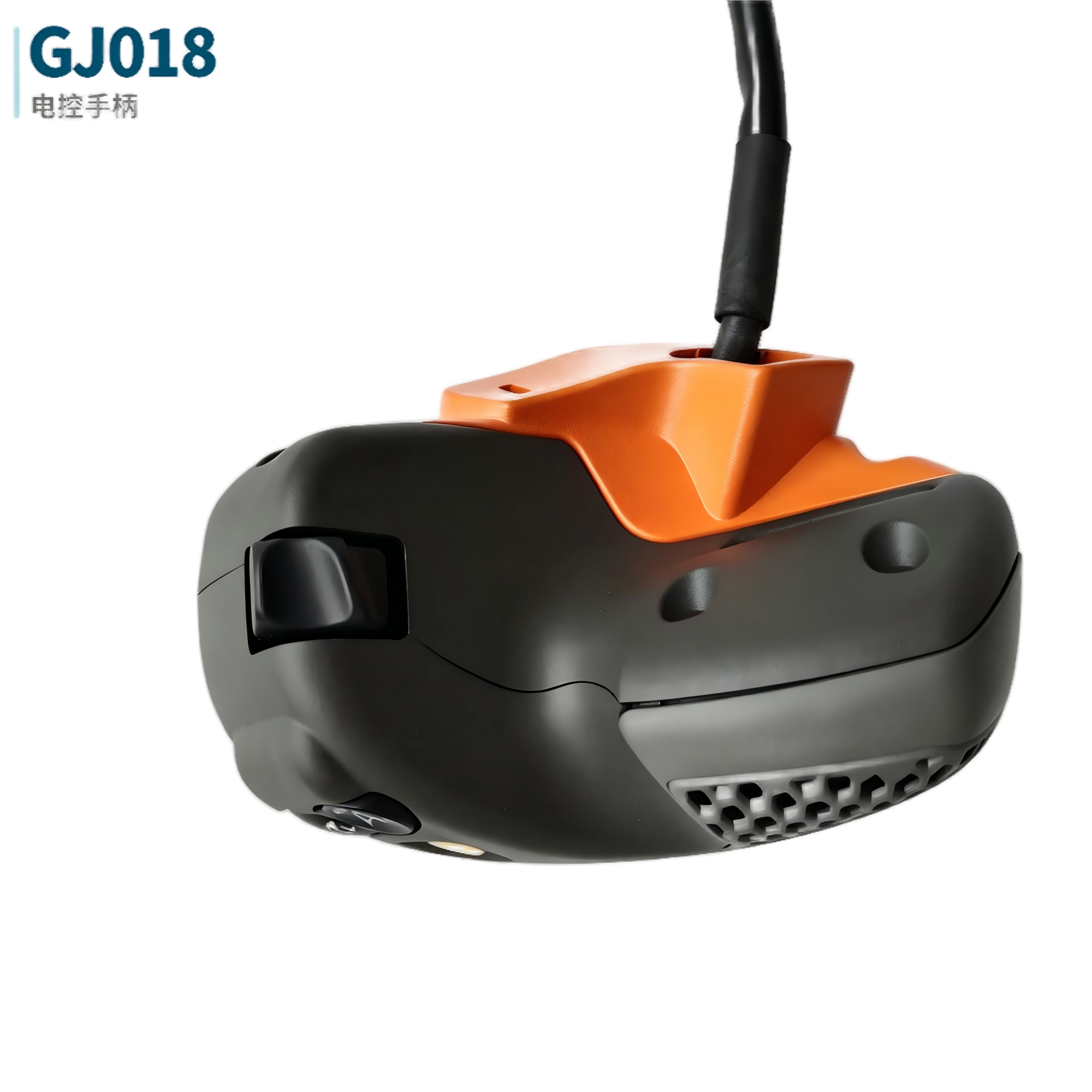

The handle adopts an ergonomic design, tailored for operation scenarios of agricultural and construction machinery. The text and patterns on the button panel can be customized, with backlight indicators to guarantee clear visibility and easy operation under complex working conditions. Three function buttons are arranged on the top of the panel, and a trigger switch is equipped on the rear side to further optimize operation logic.

This handle supports two signal output modes: switch signal and CAN bus, which can flexibly match the interface requirements of various equipment.

Application Scope

This handle has a wide range of applications, mainly for agricultural and construction machinery, including but not limited to cranes, loaders, forklifts, excavators, tractors, combine harvesters and other equipment, delivering stable and reliable control performance.

Mechanical Parameters

Quantity of panel buttons: 13 buttons on the front, 4 buttons on the top, equipped with trigger switch

Button operating force: approx. 5 N

Button operation mode: momentary self-reset

Mechanical service life of buttons: over 1,000,000 cycles

Mounting Parameters

Wire cross-section: 0.5 mm², other specifications optional

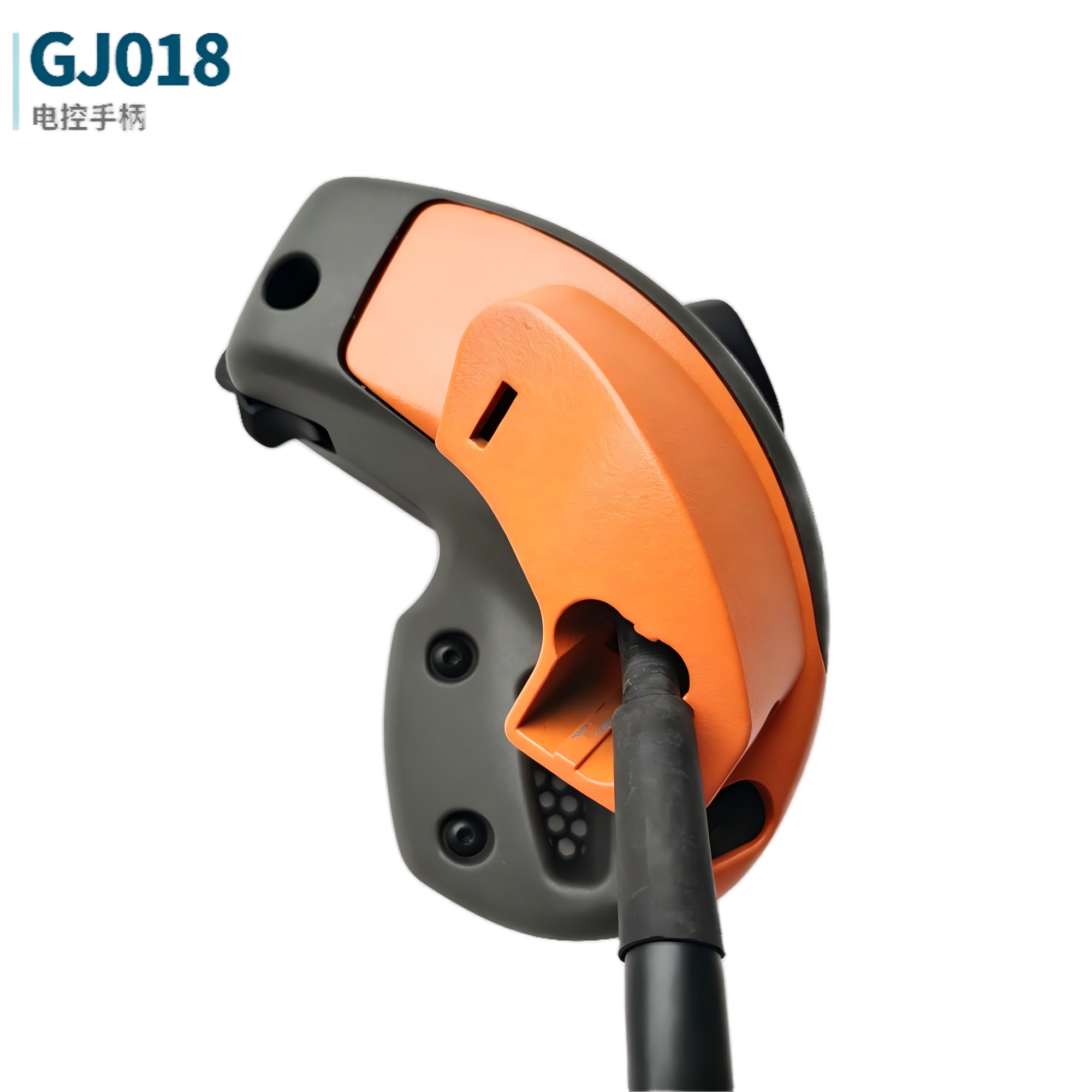

Standard direct wire outlet without terminal connectors

Customizable wiring harness length

Environmental Parameters

Operating temperature: -30°C ~ +80°C

Storage temperature: -40°C ~ +85°C
