Product Introduction

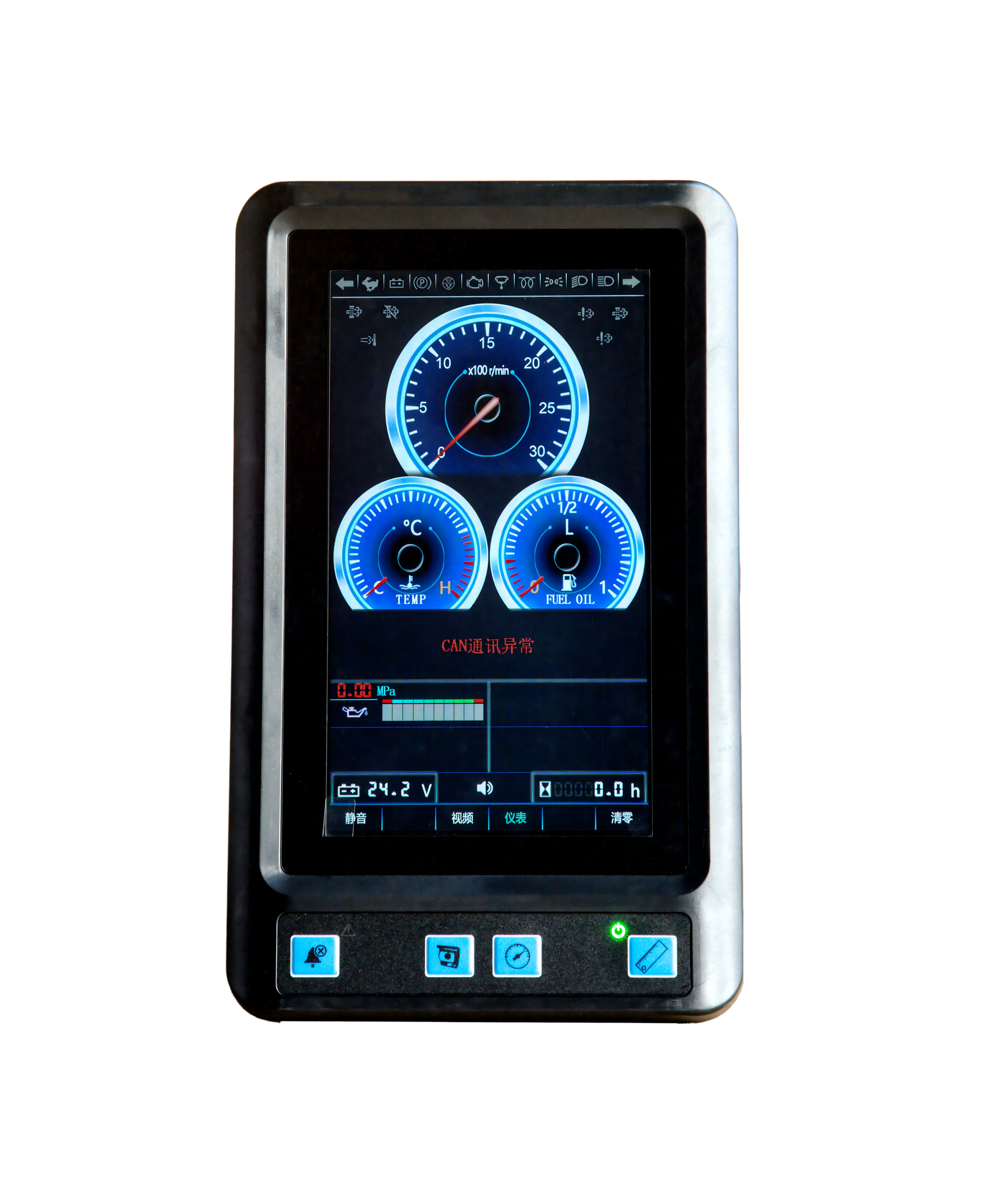

1. The display screen shows engine speed, water temperature, oil pressure, remaining fuel level, 4-channel monitoring videos (display contents of videos can be freely switched via buttons), hour meter and other data. It also integrates indicator lights including high beam, low beam, position lamp, charging indicator, water temperature alarm lamp, oil pressure alarm lamp (optional), low fuel alarm lamp, left turn signal lamp, right turn signal lamp and engine fault indicator lamp.

2. The display supports a maximum of 6 channels of rotation speed data and 4 channels of video display.

3. Reverse signal has priority. When the reverse signal is triggered, the screen will fully display the rearview image. The startup screen can be customized.

4. The display is vibration-resistant. Storage temperature: -40℃ ~ +80℃; Operating temperature: -20℃ ~ +70℃.

5. The display features dustproof performance, and all other performances comply with standard QC/T 727 Instruments for Automobiles and Motorcycles.

6. Normal operating temperature range of the display: -20℃ ~ +70℃.
